Launch X431 Pro Elite with IMMO RESET V11.21 can support TOYOTA RAV4 and CAMRY (2013-2018) smart key adding without any issue.
Here take a 2013 TOYOTA RAV4 as an example.
Operation Steps:
1. Connect the X431 PRO Elite Tablet:
Properly connect the X431 PRO Elite tablet to the Toyota vehicle.
2. Access the Main Menu:
Select Service Function>> IMMOBILIZER RESET
3. Choose Software Version:
Select the appropriate software version (e.g., IMMO RESET V11.21).
Note: If the special function menu execution is unsuccessful, enter Intelligent Diagnosis or Traditional Diagnosis, then proceed to the specific vehicle’s special function or actuation test to perform the required operations.
4. Select Vehicle Information:
Choose TOYOTA >> 16PIN DLC (North America) >> RAV4 >> 2013 >> 2AR-FE >> W >> Smart Key.
Confirm the vehicle information.
5. Check Communication:
If communication issues occur during the test, ensure the vehicle is not equipped with additional aftermarket parts. If such parts are installed, try removing them and retesting.
6. Select SMK (Smart Key):
The ECU controls keyless entry and engine start by detecting the smart key.
Click “OK”.
7. Access Special Functions:
Select Special Function.
The system will scan for available special functions.
8. Choose Smart Code Registration (Classic):
Follow the on-screen instructions.
Ensure the power/engine switch is ON (IG) and the smart cancel function is OFF.
9. Register Keys:
Select “I am just registering keys”.
The system will display the remaining number of keys that can be registered (e.g., 3 remaining) and the number of keys currently registered (e.g., 1 registered).
10. Register New Smart Key:
Touch the power/engine switch with a registered key (ensure the emblem side faces the 1G SW).
Touch the power/engine switch with the new key (ensure the emblem side faces the 1G SW).
The smart code will be checked.
To register additional keys, repeat the above steps.

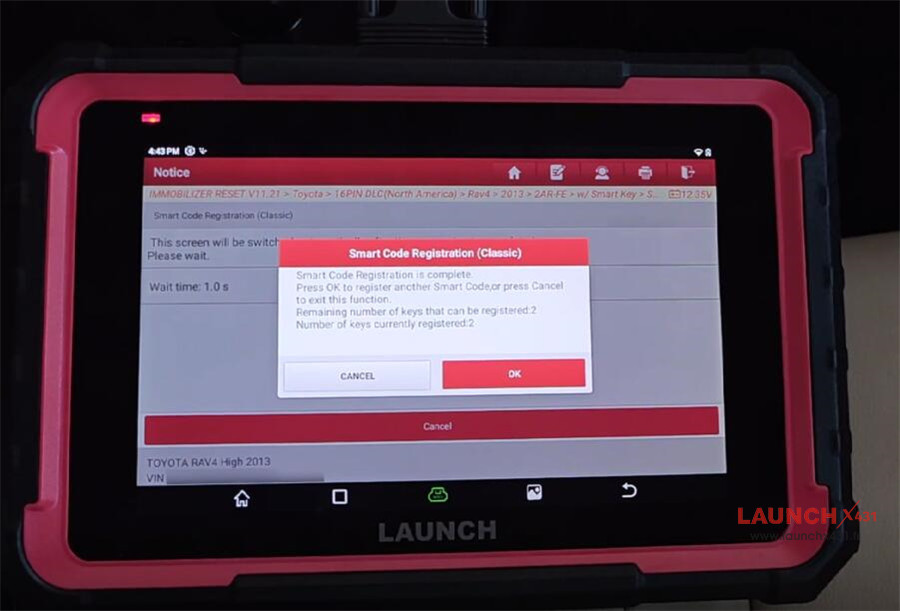

11. Complete Registration:
Once the smart code registration is complete, the system will confirm the number of registered keys (e.g., 2 keys registered).
12. Test the Key:
Finally, test the newly registered smart key to ensure it functions properly.
Conclusion:
This is the complete process for adding a smart key to a 2013-2018 Toyota RAV4 or Camry using the Launch X431 PRO Elite diagnostic tool. Follow the steps carefully to ensure successful registration and functionality of the smart key.
