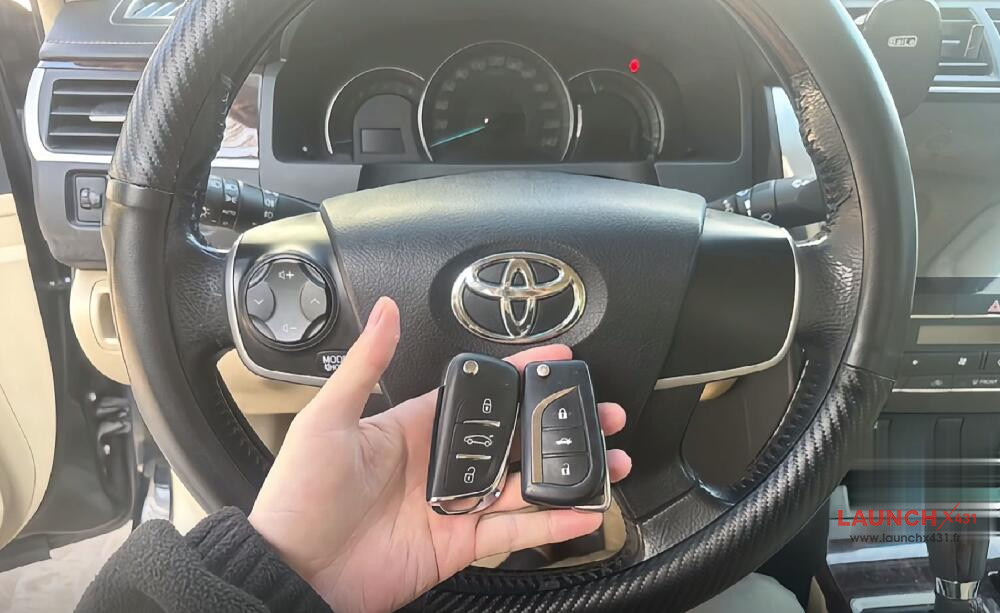

How to use Launch X431 IMMO Elite to generate remote and add mechanical key to a Toyota Camry?
You need an X431 Key Programmer to work with it, and make sure the key programming software is updated to the latest version (V1.1.0 or above).
Operation guide:
1. Check if the software is the latest version
Click “Update” on the main menu to check if the software is in the latest version
2. Read transponder
Click “Read Transponder” on the main menu
Put the original car key into the coil of the Launch X431 Key Programmer
Then click “Read Transponder” to identify the chip info.
Identify the IMMO type is transponder 46
3. Detect frequency
Click “Frequency detection”
Still keep the original car key in the coil of X-431 Key Programmer and press the key remote control button to identify the key frequency
Detect the frequency is 315.09 MHz ASK
4. Generate remote
Click “Vehicle Remote” on the main menu
Select ASIA>> Toyota>> Corolla>> Corolla 12-17 ASK 314 Australia
Put the key into the key programmer to generate the key
Click “Generate” to generate the remote
Burn successfully
5. Add mechanical key
After generating the key, open the anti-theft software on X431 IMMO Elite Key Programmer to add the key
Select IMMO>> TOYOTA>> TOYOTA V10.10>> Immobilizer/Keys Programming>> Vehicle mode>> Other region>> CAMRY>> -2018>> Mechanical key>> Type 5 (With G 72)>> Add Key
Read the on-screen prompt info:
- To Clear Or Add Other Keys, One Main Key Must Be Available.
- How to identify the main and sub-keys?
After a key is inserted into the ignition switch, if the immobilizer lamp (security) is not on, the key is a main key. If the immobilizer lamp turns on for 1s and then turns off, the key is a sub key.
Click “OK” to continue
Insert the matched main key, turn on the ignition switch, and press OK
Insert the new key and wait for 60s and the anti-theft light to turn off
Matching is complete
6. Match remote control
Back to the previous page, select Remote type 2>> Remote Control Matching
Turn ignition switch on, open driver side door
Simultaneously press lock and unlock button for 4 seconds, then press unlock button for 1 second
